Split TKL keyboard (QWERTZ), with an additional arrow key set on the left

Built at the Keyboard Workshop by Chaos inKL in late 2021

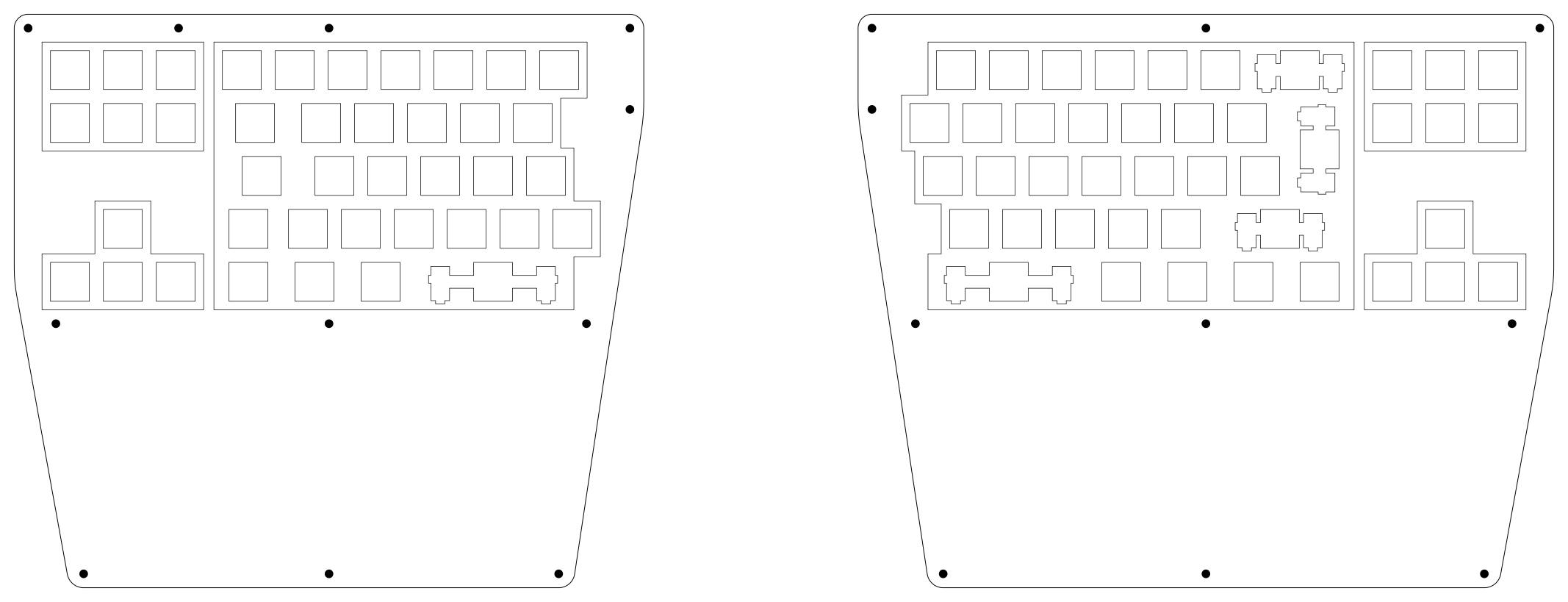

Drawing of the two keyboard halves side-by-side, only outline and switch positions visible

Make example for this keyboard (after setting up your build environment):

make franzi_split_60pct:default

Flashing example for this keyboard:

make franzi_split_60pct:default:flash

See the build environment setup and the make instructions for more information. Brand new to QMK? Start with our Complete Newbs Guide.

Bootloader

Enter the bootloader in 3 ways:

  • Bootmagic reset: Hold down the key at (0,0) in the matrix (usually the top left key or Escape) and plug in the keyboard
  • Physical reset button: Briefly press the button on the back of the PCB - some may have pads you must short instead
  • Keycode in layout: Press the key mapped to RESET if it is available
